Synchronous Controller

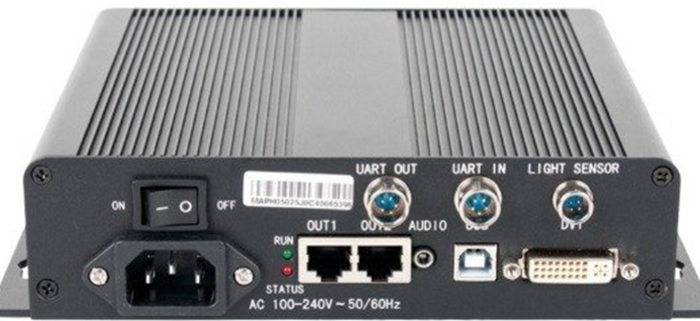

The MCTRL300 box is a Novastar™ MSD300 having a sending card inside of an aluminum enclosure, with a built-in power supply.  It will communicate with Novastar™ receiving cards inside of an LED display.  This box has a built-in light sensor port to connect the NS048C or NS060 light sensors.

Main Features:

  • 1x DVI video input.
  • 1x audio input.
  • 2x Ethernet port outputs.
  • USB interface which can be cascaded for uniform control.
  • Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668.
  • 1x light sensor interface.
  • Independent power supply.
  • Cascading ports (UART OUT/IN) have adopted aviation plug which is stable and reliable.
